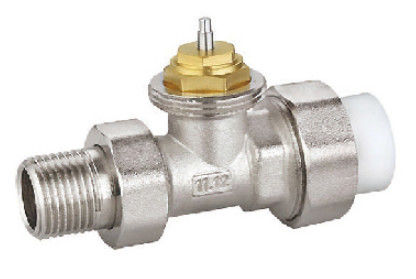

Straight Thermostatic Radiator Valve 15mm x 1/2'' With PP Pipe Nickel Plated

When the temperature of the room begins to change, a capsule in the head of the TRV will either expand or contract – automatically moving a pin in the body of the valve which causes the valve to either open or close.

If the temperature in your room drops a little too low, the capsule will contract and pull out the pin; allowing more hot water to enter your radiator and increase its temperature.

Conversely – if the room begins to get a little too warm – the expansion of the same capsule will cause the pin to close the valve and reduce the amount of hot water.

The capsules in thermostatic radiator valves operate using a metal spring that is filled with wax or liquid – with the liquid type considered to be the best and most consistent at adjusting the temperature.

One of the main advantages of liquid TRVs is that they are far more responsive to fluctuations in temperature than their wax cousins.

Wax can be quite slow to expand and contract, while liquid TRVs will change the flow of water into the radiator considerably more quickly – this is also reflecting in the price of both variations.

Details:

Nickel plated.
For PP pipe 1/2'' and 3/4'' with 15mm and 20mm.
Max. working pressure: 10 bar.
Max. working temperature: 120 °C

• Technical Specification

• Company introduction

XuanAnJu company was established in 2002 and renamed to XuanAnJu HVAC Technology Co., ltd in 2017. It is specified in manufacturing various Thermostatic Radiator Valves, Radiator Valves and other brass fittings. Thermostatic Radiator Valve are mainly use in central HVAC and floor HVAC s. The product can regulate hot water flow rate to control room temperature. It has been applying widely in many key energy saving and environmental protection projects.

Our company has passed ISO9001 quality management in 2003 and got EN215 certification in 2011. It is equipped with various testing and inspecting equipments to guarantee the quality of our products. The products that produced by our company all meet the requirements of our customers.

• FAQ

Q: How long is your product guarantee period?
A: We have three-year guarantee.

Q: What is your MOQ?
A: For OEM product we have different MOQ for various product, and for ODM product we do not have MOQ because we will deliver the products from our stock in warehouse.

Q: Can you accept OEM?
A: We can do OEM but we require a certain MOQ.

Q: How long is your delivery time?

A: For the items if we have enough stocks, we can send to you immediately. For mass production, we can promise 30-45 days.​
