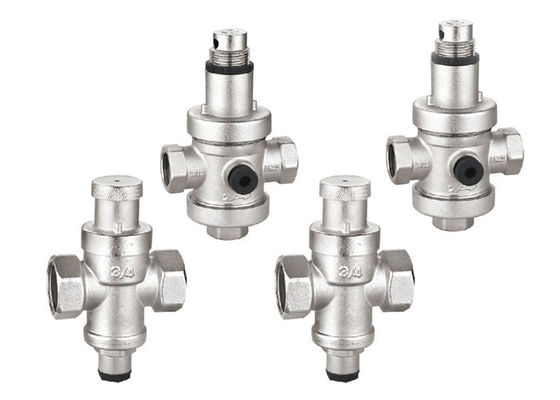

Nickel Plated Adjusting Pressure Reducing Valves 1/2'' F X F With 1/4'' Gauge Port PRV

A pressure reducing valve helps to regulate water pressure on plumbing s. If water pressure is too high or is fluctuating it can affect the performance and lifespan of HVAC and hot water s. It can also impact on other products around the home that are fed by mains water. Usually fitted on the mains water inlet a PRV can lower incoming pressure and regulate it to give a consistent flow. Suitable for hot and cold water s and available with or without a gauge, the range also comes in various fitting sizes.

• Contoured diaphragm

The membrane was designed with a special shape to give an accurate pressure regulation as a function of changes in the downstream pressure. This design feature also extends the valve life because the diaphragm is more resistant to pressure sudden changes and to wear.

• Silent operation

The large chamber on the outlet side of the reducing valve creates a low flow speed zone. This is particularly effective in reducing noise generated by narrowing the width of the passage through which the water flows when the valve is reducing pressure.

Brass pressure reducing valve with 1/4'' gauge port

Brass body in Nickel plated

Max. upstream pressure: 16 bar

Downstream setting pressure range: 1 ~ 6 bar

Max. working temperature: 60℃

• Technical Specification

• Company introduction

XuanAnJu company was established in 2002 and renamed to XuanAnJu HVAC Technology Co., ltd in 2017. It is specified in manufacturing various Thermostatic Radiator Valves, Radiator Valves and other brass fittings. Thermostatic Radiator Valve are mainly use in central HVAC and floor HVAC s. The product can regulate hot water flow rate to control room temperature. It has been applying widely in many key energy saving and environmental protection projects.

Our company has passed ISO9001 quality management in 2003 and got EN215 certification in 2011. It is equipped with various testing and inspecting equipments to guarantee the quality of our products. The products that produced by our company all meet the requirements of our customers.

• FAQ

Q: How long is your product guarantee period?
A: We have three-year guarantee.

Q: What is your MOQ?
A: For OEM product we have different MOQ for various product, and for ODM product we do not have MOQ because we will deliver the products from our stock in warehouse.

Q: Can you accept OEM?
A: We can do OEM but we require a certain MOQ.

Q: How long is your delivery time?

A: For the items if we have enough stocks, we can send to you immediately. For mass production, we can promise 30-45 days.​
