Adjustable Control Anti Scale Thermostatic Mixing Valves Strainers

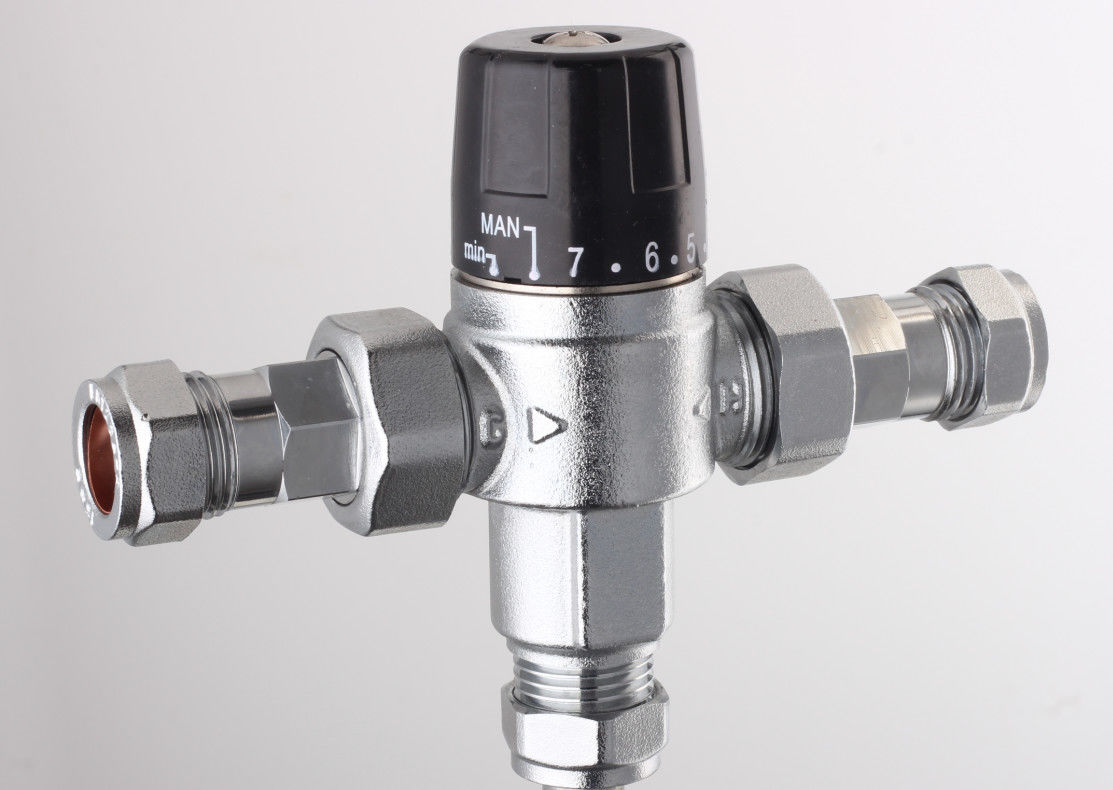

Large Image : Adjustable Control Anti Scale Thermostatic Mixing Valves Strainers

Product Details:

Place of Origin:	CHINA
Brand Name:	XuanAnJu
Certification:	TMV2 (in application) / WRAS
Model Number:	XAJ1310

Payment & Shipping Terms:

Minimum Order Quantity:	300 pcs
Packaging Details:	XuanAnJu standard package

Contact Now

Adjustable Control Anti Scale Thermostatic Mixing Valves Strainers

Description

Adjustment Range:	35℃ - 55℃ (±2℃)	Max. Working Pressure:	5 Bar (dynamic)
Max. Inlet Temp:	85℃	Flow Pressure Hot/Cold:	0.1-1.0 Bar
Min. Temp Differential For Fail-safe:	10℃	Connection:	15mm / 22mm Compression End
Highlight:	15mm Thermostatic Mixing Valves , Anti Scale Thermostatic Mixing Valves , 22mm thermostatic control valve

Function

The thermostatic mixing valve is used in systems that produce domestic hot water. It is designed to maintain the preset temperature of the mixed water delivered to the user outlet, when there are variations in the temperature and pressure of the hot and cold water at the inlet, or in the drawn-off flow rate. These devices are also available with fittings complete with strainers and check valves on the hot and cold water inlets.

Operating principle

The regulating element in the thermostatic mixing valve consists of a temperature sensor fully immersed in the mixed water outlet pipe which, by expanding and contracting, continuously ensures correct proportioning of hot and cold water at the inlet. The water proportions are regulated by a piston that slides inside a special cylinder placed between the hot and cold water passage channels. Even if the pressure drops due to hot or cold water drawn-off by other users or temperature variations at the inlet, the mixing valve automatically adjusts the water flow rate until the set temperature is achieved.

Check valves

In systems with thermostatic mixing valves, check valves must be installed to prevent undesired backflow.

Technical details

Adjustable Control Anti Scale Thermostatic Mixing Valves Strainers 0

Company introduction

XuanAnJu company was established in 2002 and renamed to XuanAnJu HVAC Technology Co., ltd in 2017. It is specified in manufacturing various Thermostatic Radiator Valves, Radiator Valves and other brass fittings. Thermostatic Radiator Valve are mainly use in central HVAC and floor HVAC s. The product can regulate hot water flow rate to control room temperature. It has been applying widely in many key energy saving and environmental protection projects.

Our company has passed ISO9001 quality management in 2003 and got EN215 certification in 2011. It is equipped with various testing and inspecting equipments to guarantee the quality of our products. The products that produced by our company all meet the requirements of our customers.

FAQ

Q: How long is your product guarantee period?
A: We have three-year guarantee.

Q: What is your MOQ?
A: For OEM product we have different MOQ for various product, and for ODM product we do not have MOQ because we will deliver the products from our stock in warehouse.

Q: Can you accept OEM?
A: We can do OEM but we require a certain MOQ.

Q: How long is your delivery time?

A: For the items if we have enough stocks, we can send to you immediately. For mass production, we can promise 30-45 days.
