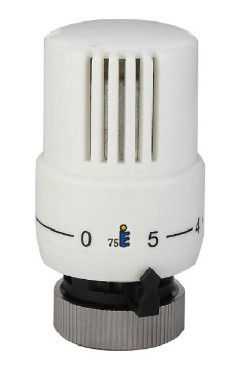

EN215 Replacement Thermostatic Radiator Valve Head With Liquid Sensor M30x1.5 XAJ303

Function

The thermostatic head senses the air temperature in the room, but in this demonstration using hot water speeds up how quickly it heats up and shows clearly how the pin expands. The pin from the thermostatic head pushes down on the flow valve stopping the water from flowing into the radiator when it reaches temperature.

Thermostatic head with liquid sensor.
Ring nut with standard thread M30x1,5 mm for installation on all YKHCA valves with thermostatic option.
Adjustment positions from * to 5, corresponding to a temperature range of 7~28 °C.
Temperature range in combination with the valve bodies: 5~110 °C.
Max. working pressure in combination with the valve bodies: 10 bar.

• Technical specification

• Company introduction

XuanAnJu company was established in 2002 and renamed to XuanAnJu HVAC Technology Co., ltd in 2017. It is specified in manufacturing various Thermostatic Radiator Valves, Radiator Valves and other brass fittings. Thermostatic Radiator Valve are mainly use in central HVAC and floor HVAC s. The product can regulate hot water flow rate to control room temperature. It has been applying widely in many key energy saving and environmental protection projects.

Our company has passed ISO9001 quality management in 2003 and got EN215 certification in 2011. It is equipped with various testing and inspecting equipments to guarantee the quality of our products. The products that produced by our company all meet the requirements of our customers.

• FAQ

Q: How long is your product guarantee period?
A: We have three-year guarantee.

Q: What is your MOQ?
A: For OEM product we have different MOQ for various product, and for ODM product we do not have MOQ because we will deliver the products from our stock in warehouse.

Q: Can you accept OEM?
A: We can do OEM but we require a certain MOQ.

Q: How long is your delivery time?

A: For the items if we have enough stocks, we can send to you immediately. For mass production, we can promise 30-45 days.​
