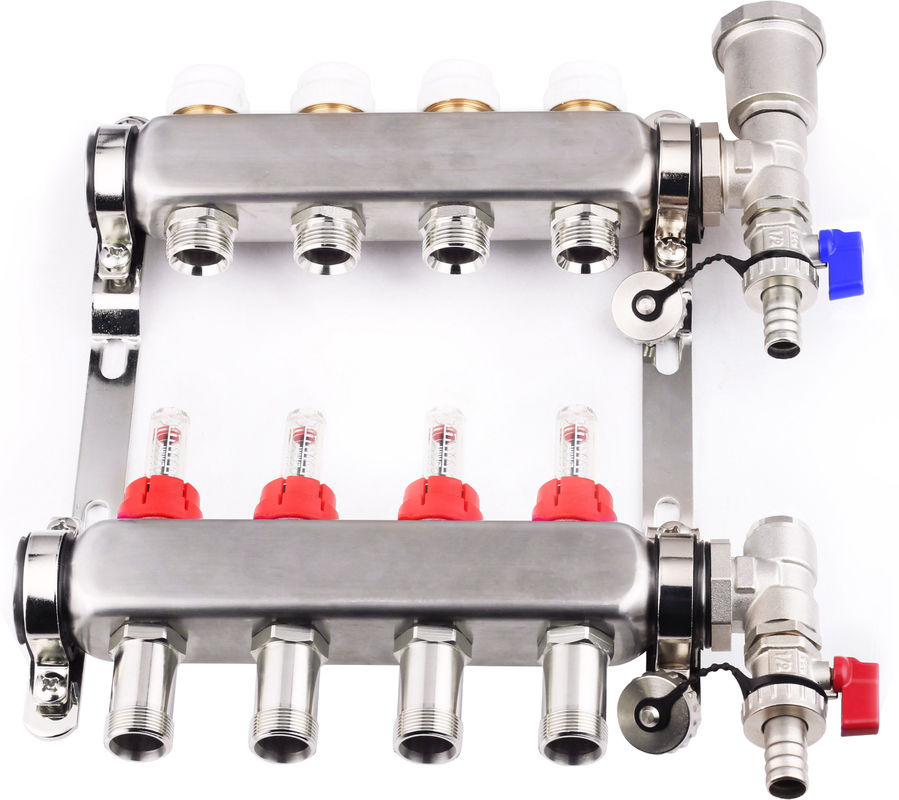

Dynamic Water Distribution Manifolds system Brass Body Cartridge Flow Meters 50mm

I'm Online Chat Now

Dynamic Water Distribution Manifolds system Brass Body Cartridge Flow Meters 50mm

Dynamic Water Distribution Manifolds system Brass Body Cartridge Flow Meters 50mm
Dynamic Water Distribution Manifolds system Brass Body Cartridge Flow Meters 50mm

Large Image :  Dynamic Water Distribution Manifolds system Brass Body Cartridge Flow Meters 50mm

Product Details:
Place of Origin: CHINA
Brand Name: XuanAnJu
Certification: /
Model Number: XAJ732
Payment & Shipping Terms:
Minimum Order Quantity: due to different ways
Packaging Details: XuanAnJu standard package

Dynamic Water Distribution Manifolds system Brass Body Cartridge Flow Meters 50mm

Description
Main Body: Stainless Steel Brackets: Steel
Max. Working Pressure: 6 Bar Working Temp Range: 5 - 60 ℃
Flow Meter Scale: 0 - 5 L/Min (±10%) Main Connection: 1'' F
Outlets: 3/4'' M Central Distance: 50 Mm
Ways Available: 2 -12 Ways
Highlight:

Dynamic Water Distribution Manifolds

,

50mm Water Distribution Manifolds

,

6 bar water distribution manifold system

  • Function
A dynamic distribution manifold can regulate the thermal medium independent from the pressure in the individual circuits of underfloor heating systems, to achieve automatic dynamic balancing. Flow manifold complete with shut-off valves or flow indicators. Flow manifold complete with dynamic distribution balancing units, which can adjust and balance the flow rate. Retrun manifold complete with thermo-electric control head, which can adjust flow rate when the room temperature changes. A dynamic distribution manifold fits to underfloor heating system and make it more comfortable and energy-efficient.

Dynamic Water Distribution Manifolds system Brass Body Cartridge Flow Meters 50mm 0

Dynamic Water Distribution Manifolds system Brass Body Cartridge Flow Meters 50mm 1

  • Features
- Dynamic Balancing: constant flow is achieved through the valve cartridge’s auto-adjustment of the opening rate when ΔP of the system fluctuates (Picture 1)
- Precision calibrated valve plug keeps the flow deviation no greater than ±5% (Picture 2)
- The flow rate is factory preset multiple ΔP ranges available for each size (Picture 3)
- No need of re-balancing after system changes (Picture 4)



  • Company introduction



XuanAnJu company was established in 2002 and renamed to XuanAnJu HVAC Technology Co., ltd in 2017. It is specified in manufacturing various Thermostatic Radiator Valves, Radiator Valves and other brass fittings. Thermostatic Radiator Valve are mainly use in central HVAC and floor HVAC s. The product can regulate hot water flow rate to control room temperature. It has been applying widely in many key energy saving and environmental protection projects.



Our company has passed ISO9001 quality management in 2003 and got EN215 certification in 2011. It is equipped with various testing and inspecting equipments to guarantee the quality of our products. The products that produced by our company all meet the requirements of our customers.



  • FAQ


Q: How long is your product guarantee period?
A: We have three-year guarantee.

Q: What is your MOQ?
A: For OEM product we have different MOQ for various product, and for ODM product we do not have MOQ because we will deliver the products from our stock in warehouse.

Q: Can you accept OEM?
A: We can do OEM but we require a certain MOQ.

Q: How long is your delivery time?

A: For the items if we have enough stocks, we can send to you immediately. For mass production, we can promise 30-45 days.
