Product Details:
Place of Origin: CHINA
Brand Name: XuanAnJu
Model Number: XAJ605
Payment & Shipping Terms:
Minimum Order Quantity: 3000 pcs
Packaging Details: XuanAnJu standard package

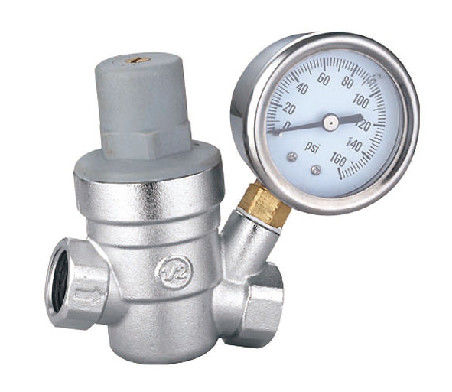

Inclined Pressure Reducing Valves High Temperature Replaceable Chrome Plated Steam Prv Valve

Description
Description: Pressure Reducing Valve Material: Normal Brass
Downstream Setting Pressure Range: 1 ~ 6 Bar Max Working Temp.: 60℃
Finish: Chrome Connection: 1/2'' And 3/4''
Pressure Gauge: 0 ~10 Bar Max. Upstream Pressure: 16 Bar
Cartridge Type: Replaceable
Highlight:

Replaceable Pressure Reducing Valves

,

Chrome Pressure Reducing Valves

,

Inclined Steam Prv Valve

Pressure reducing valves are installed in residential water to reduce and stabilise inlet pressure from the water network which is generally too high and variable for domestic s to work properly.



YK605 series are created for small s, such as apartments, and to protect water storage heaters, where size and absence of noise are of particular concern.



  • Contoured diaphragm



The membrane was designed with a special shape to give an accurate pressure regulation as a function of changes in the downstream pressure. This design feature also extends the valve life because the diaphragm is more resistant to pressure sudden changes and to wear.



  • Silent operation



The large chamber on the outlet side of the reducing valve creates a low flow speed zone. This is particularly effective in reducing noise generated by narrowing the width of the passage through which the water flows when the valve is reducing pressure.





Inclined pressure reducing valve for high temperature



Replaceable cartridge and strainer

Brass body in Chrome plated

Max. upstream pressure: 16 bar

Downstream setting pressure range: 1 ~ 6 bar

Max. working temperature: 60℃







  • Technical Specification





Inclined Pressure Reducing Valves High Temperature Replaceable Chrome Plated Steam Prv Valve 0

Inclined Pressure Reducing Valves High Temperature Replaceable Chrome Plated Steam Prv Valve 1









  • Company introduction

XuanAnJu company was established in 2002 and renamed to XuanAnJu HVAC Technology Co., ltd in 2017. It is specified in manufacturing various Thermostatic Radiator Valves, Radiator Valves and other brass fittings. Thermostatic Radiator Valve are mainly use in central HVAC and floor HVAC s. The product can regulate hot water flow rate to control room temperature. It has been applying widely in many key energy saving and environmental protection projects.



Our company has passed ISO9001 quality management in 2003 and got EN215 certification in 2011. It is equipped with various testing and inspecting equipments to guarantee the quality of our products. The products that produced by our company all meet the requirements of our customers.



  • FAQ


Q: How long is your product guarantee period?
A: We have three-year guarantee.

Q: What is your MOQ?
A: For OEM product we have different MOQ for various product, and for ODM product we do not have MOQ because we will deliver the products from our stock in warehouse.

Q: Can you accept OEM?
A: We can do OEM but we require a certain MOQ.

Q: How long is your delivery time?

A: For the items if we have enough stocks, we can send to you immediately. For mass production, we can promise 30-45 days.
